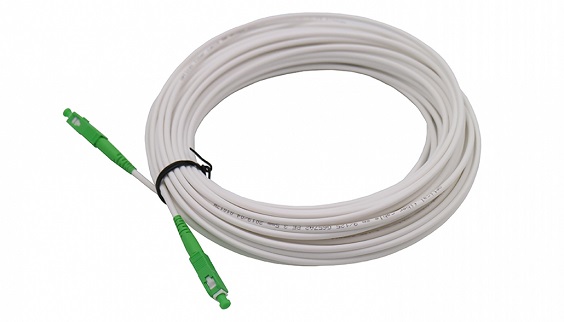

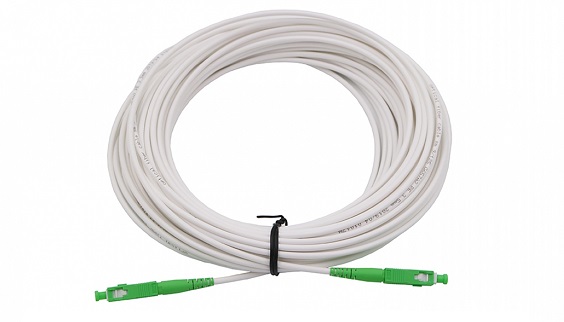

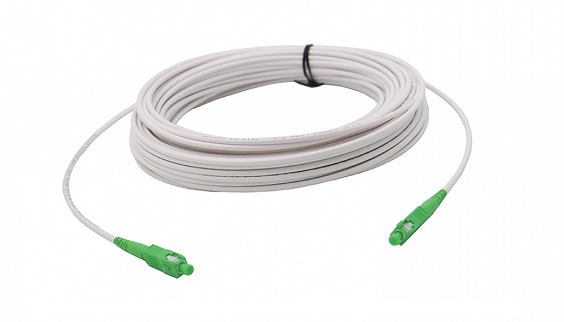

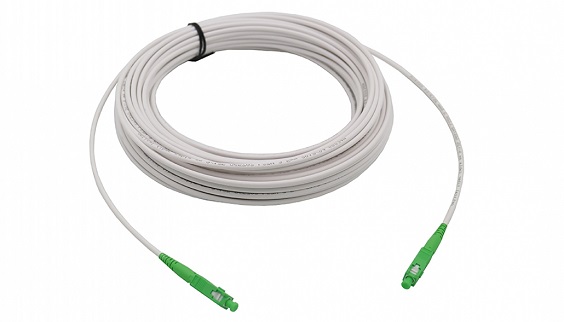

FTTH High Performance Low Insertion Loss SC/APC 3.0/3.5mm White Fiber Optic Patch Cord
SC/APC SM Simplex 1FO Optical Fiber Patch Cord Cable Jumpers for FTTH
1 F.O. G657A2 FTTH Outdoor UV Optical Fiber Patch Cable Jumper Wire
Low Insertion Loss
High Return Loss
Good Exchange Ability
Good Durability
High Temperature Stability
Standard: Telcordia GR-326-CORE
CATV
Telecommunication Networks
Local Area Networks (LANS)
Data Processing Networks
Test Equipment
Wide Area Networks(WANS)
Fiber Mode |
Single mode or Multimode |
Fiber Count |
1 |
Connector Style |
SC,FC,ST,LC,MU,E2000,DIN |
Polish or Ferrule Interface Type |
PC,APC,UPC |
Cable Lengths |
Custom Lengths |
Jacket Materials |
LSZH Material |
Outer Jacket Color |
White |
Outer Jacket Diameter(mm) |
2.0mm/3.0mm |
Fiber Type |
G657A2 |
Storage Temperature |
-20°C to 60°C |
Installation Temperature |
-5°C to 50°C |
Operating Temperature |
-20°C to 60°C |
Crush(N/100mm) |
1000 |
Maximum Tensile Load (Long term) |
150N |
Minimum Tensile Load (Short term) |
400N |
