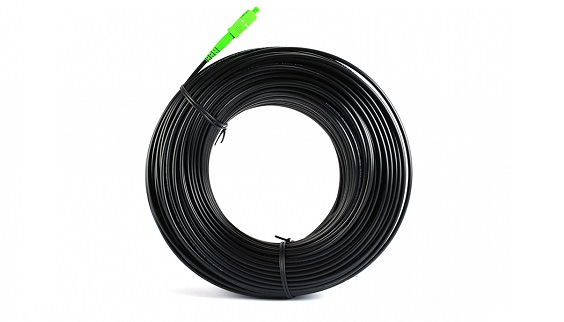

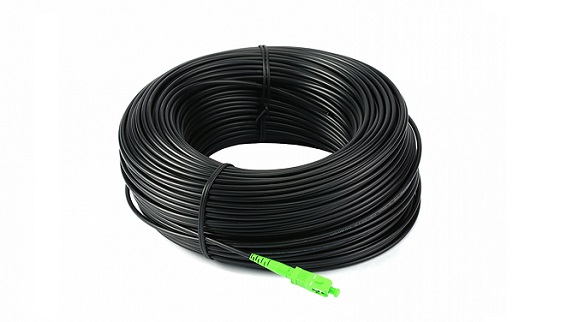

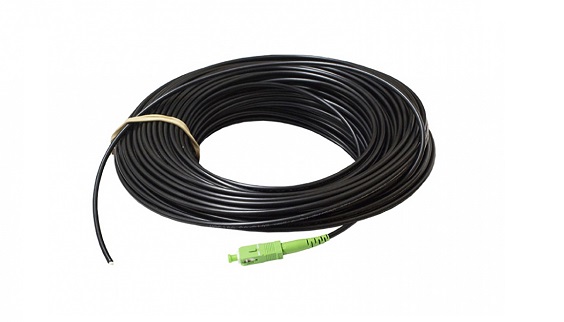

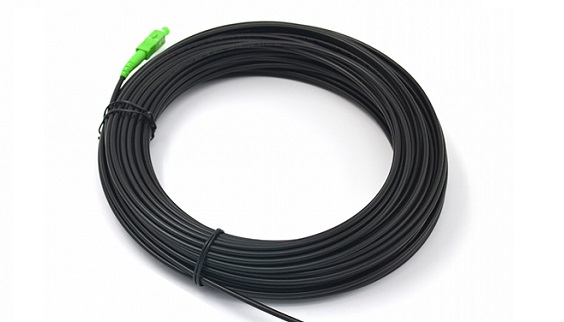

FOLINK can produce Fiber Outdoor Exterior Pigtails ,inside 1.9mm inner white LSZH sheath, outer jacket is PE Material, it can be used indoor and outdoor . And outer black 3.5mm jacket can be stripped more easily if customer need use inside 1.9mm cable to connector with patch panels, terminal box and make splicing installation .The fiber we used G657A2 fiber. For this type pigtail length always 20M, 30M, 40M, 60M, 80M,100M,120M, 2KM.
1. Low insertion loss
2. High return loss
3. Excellent interchangeability
4. High mechanical durability
5. Standard: RoHS
CATV
Telecommunication Networks
Local Area Networks (LANS)
Data Processing Networks
Test Equipment
Wide Area Networks(WANS)
Fiber Mode |
Single mode or Multimode |
Fiber Count |
1 |
Connector Style |
SC,FC,ST,LC,MU,E2000,DIN |
Polish or Ferrule Interface Type |
PC,APC,UPC |
Cable Lengths |
Custom Lengths |
Jacket Materials |
PE Material |
Outer Jacket Color |
Black |
Inner Jacket Color |
White |
Outer Jacket Diameter(mm) |
3.5±0.1 |
Inner Jacket Diameter(mm) |
1.9±0.1 |
Storage Temperature |
-20°C to 60°C |
Installation Temperature |
-5°C to 50°C |
Operating Temperature |
-20°C to 60°C |
Crush(N/100mm) |
1000 |
Maximum Tensile Load (Long term) |
150N |
Minimum Tensile Load (Short term) |
400N |
