The fiber optic patch cord is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
It is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
Technical Specification:
Optical Properties |
Singlemode |
Multimode |
Maxmium Insertion Loss (dB) |
Standard: UPC ≤ 0.3, APC ≤0.3 Premium: UPC ≤ 0.2, APC ≤0.2 |
Standard: ≤ 0.3 Premium: ≤ 0.2 |
| Typical Insertion Loss (dB) |
Standard: ≤0.15 Premium: ≤0.10 |
Standard: ≤0.15 |
Return Loss (dB) |
Standard: UPC ≥ 50, APC ≥ 60 Premium: UPC ≥ 55, APC ≥ 65 |
Standard: ≥ 30 Premium: ≥ 35 |
Test Wavelength (nm) |
1310/1550 |
850/1300 |
Fiber Attenuation (dB/km) |
0.35 at 1310nm |
2.3 at 850nm |
0.2 at 1550nm | ||
0.6 at 1300nm | ||
Transmission Distance |
Not defined |
OM3: 100m at 40/100G, 300m at 10G |
OM4: 100m at 40/100G, 400m at 10G |
General Specification:
Constructions |
Descriptions |
Fiber Count |
Simplex |
Fiber Mode |
Single mode: 9/125μm, OS2/G657 Multimode: 50/125μm, OM2, OM3, OM4; 62.5/125um, OM1 |
Fiber Brand |
Corning: SMF-28® Ultra optical fiber, or ClearCurve bend insensitive optical fiber; Corning ClearCurve multimode optical fiber YOFC: Singlemode and Multimode Fibers. |
Cable Dimension |
0.9mm, 1.6/1.8mm, 2.0mm, 3.0mm or customized |
Cable Jacket Materials |
Low Smoke Zero Halogen (LSZH); Riser (OFNR); Plenum (OFNP) |
Cable Jacket Color |
OS2/G657: Yellow OM3: Aqua; OM4: Aqua / Magenta; or Customized |
Connector Type |
LC, SC, FC, ST, MU, MTRJ, E2000, or others required |
Physical Contact |
APC, PC, UPC |
Connector Color |
LC, SC: Green for SM APC, Blue for SM UPC; Aqua for OM3, Aqua or Magenta for OM4; Grey for OM1/OM2, or Customized FC, ST: Metal MTRJ: Black |
Boot Color |
White/Green/Aqua/Magenta/Grey/Red/Black Customized |
Operating Temperature |
-20 °C ~ +70 °C |
Storage Temperature |
-40 °C ~ +85 °C |
Typical Cable Construction of Fiber Patchcord & Pigtail:
Fiber Count |
OD (mm) |
Nominal |
Max. Tension (N) |
Max. Crushing Resistance (N/100mm) |
||
Weight (kg/km) |
Short Term |
Long Term |
Short Term |
Long Term |
||
Simplex 1.6 |
1.6±0.2 |
2.6 |
80 |
40 |
500 |
100 |
Simplex 2.0 |
1.9±0.2 |
4.5 |
100 |
60 |
500 |
100 |
Simplex 3.0 |
2.8±0.2 |
7.5 |
100 |
60 |
500 |
100 |
Ordering Information:
Example P/N: KJH-3D20L-LUSA-M5
Item Description: FOLINK Enhanced Patch Cables, OM3 Fiber, Duplex 2.0mm LSZH Cable, LC/UPC-SC/APC Connector termination, 5 Meters
Grade |
Fiber Type |
Fiber Count |
Jacket |
End A |
End B |
Unit |
Length |
Special |
|||||||||
KJH |
Enhanced |
9 |
SM OS2 |
S16 |
Simplex 1.6mm |
R |
OFNR |
LU |
LC/UPC |
LU |
LC/UPC |
M |
Meters |
1 |
1 |
xx |
Specify |
KJP |
Premium |
1 |
OM1 62.5/125 |
S20 |
Simplex 2.0mm |
P |
OFNP |
LA |
LC/APC |
LA |
LC/APC |
F |
Feet |
2 |
2 |
||
2 |
OM2 50/125 |
S30 |
Simplex 3.0mm |
L |
LSZH |
LB |
LC Uniboot |
LB |
LC Uniboot |
3 |
3 |
||||||
3 |
OM3 50/125 |
Z16 |
Zipcord 1.6mm |
SU |
SC/UPC |
SU |
SC/UPC |
5 |
5 |
||||||||
3R |
OM3 RBS |
Z20 |
Zipcord 2.0mm |
SA |
SC/APC |
SA |
SC/APC |
10 |
10 |
||||||||
4 |
OM4 50/125 |
DR |
Duplex Round |
FU |
FC/UPC |
FU |
FC/UPC |
XX |
Specify |
||||||||
4R |
OM4 RBS |
FA |
FC/APC |
FA |
FC/APC |
||||||||||||
5 |
OM5 50/125 |
TU |
ST/UPC |
TU |
ST/UPC |
||||||||||||
7 |
G.657 A1 |
EA |
E2000/APC |
EA |
E2000/APC |
||||||||||||
A |
G.657 A2 |
MU |
MU/UPC |
MU |
MU/UPC |
||||||||||||
B |
G.657 B3 |
JF |
MT-RJ/Female |
JF |
MT-RJ/Female |
||||||||||||
… |
… |
… |
… |
… |
… |
||||||||||||

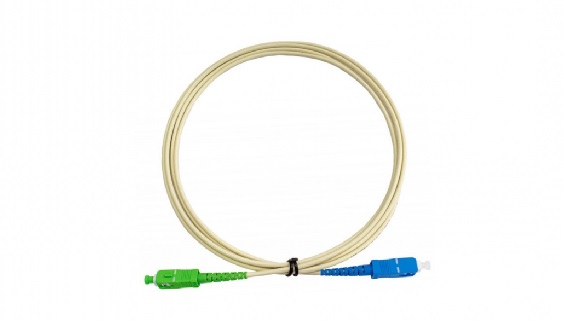

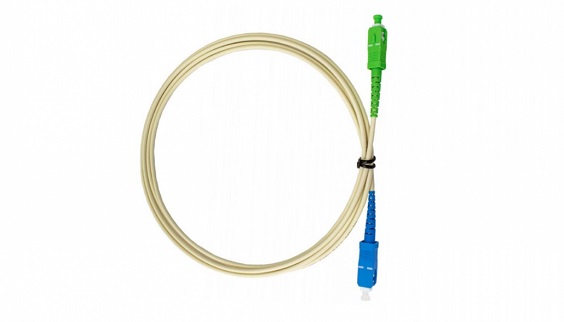

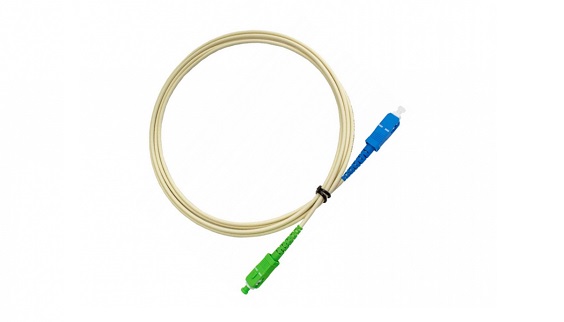

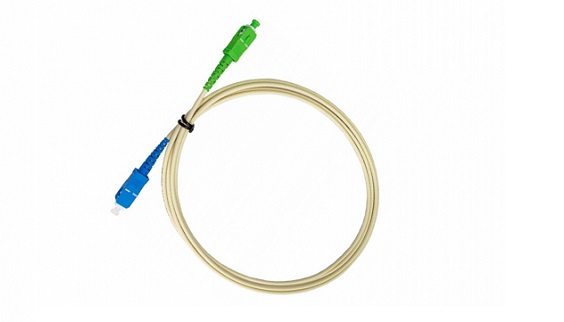

SM SX Ivory white 3.0mm fiber optic patch cords
