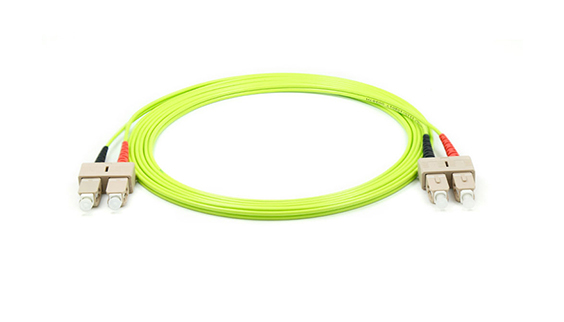

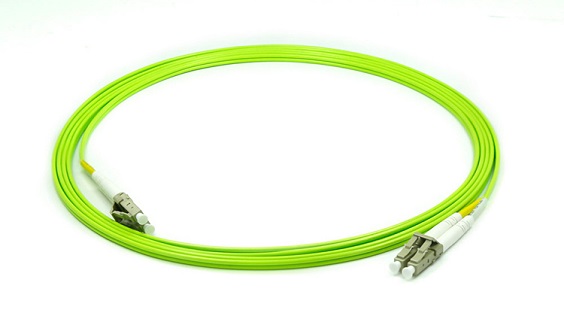

FOLINK OM5 Series Fiber Optic Patch Cords and the required fiber optic cables are widely applicated such as fiber optic communication systems, fiber optic home entry, fiber optic data transmission, fiber optic CATV, local area network (LAN), optical test instruments, fiber optic sensors, and more.

FOLINK provides a complete line of high performance fiber optic cable assemblies, based on our quality connector kits, zirconia ferrules and cables, they are fully covering SC, FC, ST, LC, MU, MT-RJ, E-2000, Din, D4 connector termination, with PC(physical contact), UPC(Ultra physical contact), APC(Angled physical contact) connector polishing. The Simplex/Duplex patch cords are designed to interconnect or cross connect fiber networks within structured cabling systems, comply with industry standards for optical, mechanical and environmental performance. Available with a wide variety of connector, fiber and cable types at virtually any length, our jumpers can be customized for your unique applications.

FOLINK simplex/duplex patch cords have Premium Level and Standard Level of two quality levels, the Premium Level patch cords with higher performance and custom options. The Standard Level Patch Cords are a cost-competitive solution that meets or exceeds all industry standards. Both of them are under a fast delivery service.

Features:

• The products are made of imported ceramic thief inserts and imported high-quality optical fiber cables;

• The introduction of foreign advanced grinding technology and grinding equipment, effectively ensure that the center of the fiber grinding offset, fiber concave, fiber surface without scratches and defects, the size of the curvature radius of the ceramic end face number of parameters in line with the standard provisions;

• Small insertion loss, large return loss, good interchange performance, excellent performance of repeated insertion and extraction, easy to use;

• According to customer requirements to provide a full set of customized services;

• All components have been optically tested and are in line with RoHS standards;

• Comply with ANSI/TIA/EIA and ISO/IEC requirements for durability, moisture resistance, coupling stress, fiber tensile force and adaptability to harsh environment such as humidity, extreme temperature, plug and pull force and cable tensile stress, impact and vibration;

• Operating Temperature (-40℃~+75℃), Storage Temperature (-40℃~+85℃).

Technical Specification:

General Specification:

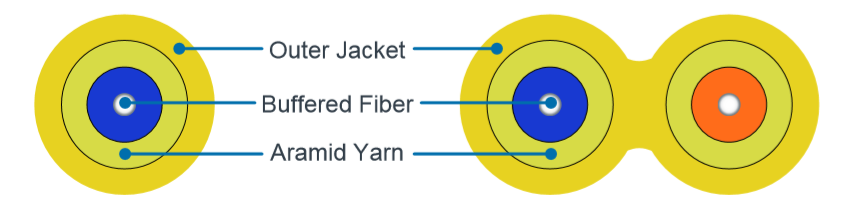

Typical Cable Construction of Fiber Patchcord & Pigtail:

Ordering Information:

Example P/N: KJH-3D20L-LUSA-M5

Item Description: FOLINK Enhanced Patch Cables, OM3 Fiber, Duplex 2.0mm LSZH Cable, LC/UPC-SC/APC Connector termination, 5 Meters
