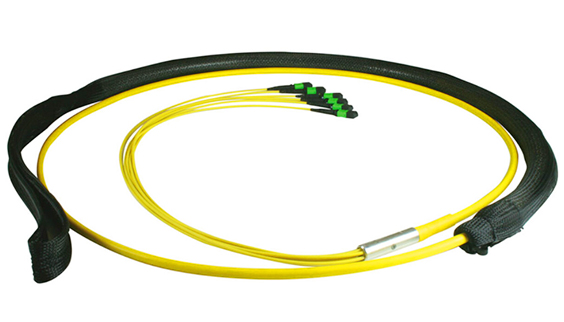

LooseTube Cable Assemblies utilize the patented AFL Hyperscale® transition module and guarantees superior tensile strength and crushing resistance. The high density design can scale from 2 up to 144 fibers and can feature both 900 µm and ruggedised 2 mm tail leads. Assemblies can comprise of both multifiber MPO and discrete connectors, making the AFL Hyperscale® a flexible hybrid solution for diverse applications.
Available in OS1/2 G.657A1, OM1, OM2, OM3, OM4
Up to 144 fiber core count
Available with Multifiber MPO and discrete connectors
900 µm or 2 mm ruggedised tails
Internal/External Application
Factory terminated and tested
Steel tape armored version available
Very High Density AFL Hyperscale LT can scale up to 144 fibers for very high density Data Centre or Central Office application.
Hybrid MPO and Discrete Connector Interface AFL Hyperscale
LT can be used as high density multifiber MPO ruggedised trunk or ruggedised MPO to LC or SC fanouts.
Tails Selection 2mm ruggedised tails can be used for a direct front panel or equipment connections whereas 900µm tails can be used for installation inside fiber management.
Rapid Deployment Factory terminated cabling saves installation and reconfiguration time eliminating field deployment variables.
Optimised Performance Low loss Premium MPO, discrete Premium connectors and OM4 fiber assures low insertion losses and power penalties in tight power budget high speed network environment.
Compact Size Small dimension of breakout module and multifiber assemblies improves space management in high density applications.
Applications
1. Data Center Infrastructure
2. Storage Area Networks(SAN)
3. Gigabit Ethernet
4. Telecommunication networks
Ordering Information:
Example P/N: KTC-312LA-SMMB-M10
Item Description: FOLINK Trunk Cables, OM3 12-Fiber, LSZH Yellow Jacket, Standard Grade MPO Female to MPO Female, Polarity B, Overall Length 10 Meters.
Code |
Fiber Type |
Fiber Count |
Jacket |
Color |
Grade |
End A |
End B |
Polarity |
Unit |
Length |
*Tails or Custom |
||||||||||
KTC |
3 |
OM3 |
12 | 12 |
R |
OFNR |
Y |
Yellow |
E |
M |
MPO/F |
M | MPO/F |
A |
Polarity A |
M |
Meters |
1 |
1 |
*00 |
None tails |
4 |
OM4 |
24 |
24 |
P |
OFNP |
A |
Aqua |
S |
O |
MPO/M |
O |
MPO/M |
B |
Polarity B |
F |
Feet |
2 |
2 |
*01 |
Even tails |
|
7 |
G.657A1 |
48 |
48 |
L |
LSZH |
V |
Violet |
X |
Open |
C |
Polarity C |
3 |
3 |
*02 |
Staggered tails |
||||||
8 |
G.657A2 |
72 |
72 |
C |
CPR |
5 |
5 |
||||||||||||||
96 |
96 |
10 |
10 |
||||||||||||||||||
144 |
144 |
XX |
Specify |
||||||||||||||||||
Construction（MPO/MTP）
ELEMENT |
CHARACTERISTIC |
|---|---|
Fiber |
G657A1, G.657A1, OM3, OM4 |
Tail Dimensions |
2mm Simplex Tails Fanout. 2mm Duplex Tails Fanout |
Terminations |
MPO 12 Fiber Ferrule Body Sleeve: MM (Beige), MM Elite (Aqua), SM (Green), SM Elite (Yellow) |
Cable Diameter |
12/24 Cores Trunk Double Jacket OD MAX: 4.5 ± 0.3 mm 12/24 Cores Patch Single Jacket OD MAX: 3.0 ± 0.3 mm |
Crush Resistance |
DoubleJacket 4.5mm OD- 1000N/100mm; SingleJacket 3mmOD- 500N/100mm |
Cable Tensile Strength |
DoubleJacket 4.5mm OD (Short) 400N; SingleJacket 3mm OD (Short) 200N |
Storage Temperature |
Storage/Operating Temperature: -20 ~ +60°C; |
Cable Strength Member |
Aramid |
Connector Performance
CONNECTOR MATING |
IL AVERAGE |
IL MAX |
RETURN LOSS |
|---|---|---|---|
MPO Premium (MM) |
0.10 dB |
0.35dB |
N/A |
MPO Premium (SM) |
0.20 dB |
0.35dB |
>60 dB |
MPO (MM) |
0.20 dB |
0.60dB |
N/A |
MPO (SM) |
0.25 dB |
0.75dB |
> 60 dB |
OPTICAL PERFORMANCE* |
MM PREMIUM |
MM ENHANCED |
SM PREMIUM |
SM ENHANCED |
CONFORMANCE |
IL Max/Master (Acceptance) |
0.15 dB |
0.25 dB |
0.15 dB |
0.25 dB |
IEC 61300-3-4 |
Ave/Master |
0.08 dB |
0.15 dB |
0.12 dB |
0.18 dB |
IEC 61300-3-4 |
Ave/Random |
0.10 dB |
0.20 dB |
0.12 dB |
0.18 dB |
IEC 61300-3-34 |
RL(Min Acceptance) |
NA |
NA |
55/65** |
55/65** |
IEC 61300-3-6 |
* Connector Performance table does not refer to E2A terminations
** UPC/APC
Cable Performance
|
CABLED FIBRE TYPE (ISO/IEC 11801) |
OS1/OS2 |
OM1 |
OM2 |
OM3 |
OM4 |
|---|---|---|---|---|---|
Attenuation Coefficient [dB/km] |
≤ 0.38 Max (1300 nm) ≤ 0.25 Max (1300 nm) ≤ 0.34 Typ (1550 nm) ≤ 0.19 typ (1550 nm) |
≤ 3.5 Max (850 nm) ≤ 1.5 Max (1300 nm) ≤ 2.9 Typ (850 nm) ≤ 1.2 typ (1300 nm) |
≤ 3.5 Max (850 nm) ≤ 1.5 Max (1300 nm) ≤ 2.7 Typ (850 nm) ≤ 0.9 typ (1300 nm) |
≤ 3.5 Max (850 nm) ≤ 1.5 Max (1300 nm) ≤ 2.7 Typ (850 nm) ≤ 0.9 typ (1300 nm) |
≤ 3.5 Max (850 nm) ≤ 1.5 Max (1300 nm) ≤ 2.7 Typ (850 nm) ≤ 0.9 typ (1300 nm) |
Minimum Bandwidth: Overfilled Launch [Mhz-km] |
N/A |
≥ 200 (850nm) ≥ 500 (1300nm) |
≥ 500 (850nm) ≥ 500 (1300nm) |
≥ 1500 (850nm) ≥ 500 (1300nm) |
≥ 3500 (850nm) ≥ 500 (1300nm) |
Minimum Bandwidth: Laser Effective Modal Bandwidth [Mhz-km] |
N/A |
N/A |
N/A |
≥ 2000 (850nm) |
≥ 4700 (850nm) |
