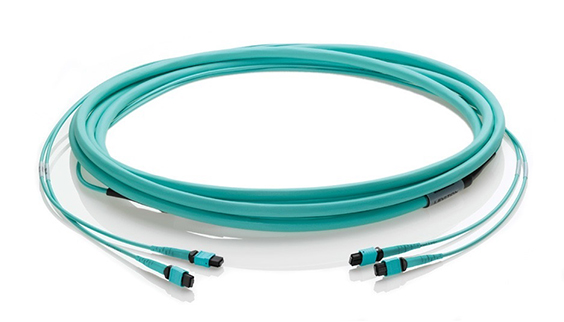

FOLINK's MPO MicroCable Trunks facilitate rapid deployment of high-density backbone cabling in data centers or other high fiber density environments reducing network installation or reconfiguration time and cost. They are used to interconnect cassettes, panels or ruggedised MPO Fan Outs, spanning MDA, HDA and EDA zones. These are offered in all fiber types as standard 12 to 144 core versions using a compact and rugged MicroCable structure. The compact cables optimize cable-way use and improve airflow. MPO low loss Premium versions are offered featuring low insertion loss for demanding high-speed networks where power budgets are critical.
MPO Interface – MPO components feature superior optical and mechanical properties
Optimised Performance – Low loss Premium MPO and OM4 fiber assures low insertion losses and power penalties in tight power budget high speed network environment
High Density – Multifiber connector and compact dimension of ruggedised MicroCable ease space in costly data center environments
Rapid Deployment – Factory terminated modular system saves installation and reconfiguration time during moves, adds and changes
Reliability – 100% tested – Combination of high quality components and manufacturing quality control guarantees product to the highest standard
Next Generation Network Proof – Emerging high speed protocol are going to use MPO interface
G.657A1, G.657A2 OM3, OM4
Jacket Standard Colours: G.657A1 or G.657A2 Yellow, OM3 Aqua, OM4 Aqua (OM4 EricaViolet Available)
12xFiber Ferrule MPO Up to 144xFiber MicroCable
LSZH, OFNP, OFNR Cable Jacket Options
Female (standard) and Male MPO Connectors
Polarity A (standard), B or C
Factory Terminated and Tested Optional Pulling Element Available
Applications
1. Data Center Infrastructure
2. Storage Area Networks(SAN)
3. Gigabit Ethernet
4. Telecommunication networks
Ordering Information:
Example P/N: KTC-312LA-SMMB-M10
Item Description: FOLINK Trunk Cables, OM3 12-Fiber, LSZH Yellow Jacket, Standard Grade MPO Female to MPO Female, Polarity B, Overall Length 10 Meters.
Code |
Fiber Type |
Fiber Count |
Jacket |
Color |
Grade |
End A |
End B |
Polarity |
Unit |
Length |
*Tails or Custom |
||||||||||
KTC |
3 |
OM3 |
12 | 12 |
R |
OFNR |
Y |
Yellow |
E |
M |
MPO/F |
M | MPO/F |
A |
Polarity A |
M |
Meters |
1 |
1 |
*00 |
None tails |
4 |
OM4 |
24 |
24 |
P |
OFNP |
A |
Aqua |
S |
O |
MPO/M |
O |
MPO/M |
B |
Polarity B |
F |
Feet |
2 |
2 |
*01 |
Even tails |
|
7 |
G.657A1 |
48 |
48 |
L |
LSZH |
V |
Violet |
X |
Open |
C |
Polarity C |
3 |
3 |
*02 |
Staggered tails |
||||||
8 |
G.657A2 |
72 |
72 |
C |
CPR |
5 |
5 |
||||||||||||||
96 |
96 |
10 |
10 |
||||||||||||||||||
144 |
144 |
XX |
Specify |
||||||||||||||||||
Construction（MPO/MTP）
ELEMENT |
CHARACTERISTIC |
|---|---|
Fiber |
G657A1, G.657A2, OM3, OM4 |
Tail Dimensions |
3 mm Tails |
MPO Terminations |
MPO 12 Fiber Ferrule Body Sleeve: MM (Beige), MM Premium (Aqua, EricaViolet for EV Cable), SM (Green), SM Premium (Yellow) |
Cable Diameter |
12/24 Cores MicroCable Double Jacket OD Max 4.5 ± 0.3 mm |
Crush Resistance |
1000N/ 100 mm |
Cable Tensile Strength |
Double Jacket Microcable (up to 12 Cores) (Short/Long) 400N/ 150N |
Storage Temperature |
-20 ~ +60°C |
Installation Temperature |
-5 ~ +50°C |
Operating Temperature |
-20 ~ +60°C |
Pulling Element: Optional |
12 Core MicroCable- Rope attached to Aramid |
Contact customer service for product details confirmation if required
Connector Performance
CONNECTOR MATING |
IL AVERAGE |
IL MAX |
RETURN LOSS |
|---|---|---|---|
MPO Premium (MM) |
0.10 dB |
0.35dB |
N/A |
MPO (MM) |
0.20 dB |
0.60dB |
N/A |
MPO Premium (SM) |
0.10 dB |
0.35dB |
>60 dB |
MPO (SM) |
0.25 dB |
0.75dB |
> 60 dB |
Cable Performance
CABLED FIBRE TYPE (ISO/IEC 11801) |
OS1/OS2 |
OM1 |
OM2 |
OM3 |
OM4 |
|---|---|---|---|---|---|
Attenuation Coefficient [dB/km] |
≤0.38 Max (1310 nm) ≤0.25 Max 1310 nm) ≤0.34 Typ (1550 nm) ≤0.19 typ (1550 nm) |
≤3.5 Max (850 nm) ≤1.5 Max (1300 nm) ≤2.9 Typ (850 nm)≤1.2 Typ (1300 nm) |
≤3.5 Max (850 nm) ≤1.5 Max (1300 nm) ≤2.7 Typ (850 nm) ≤0.9Typ (1300 nm) |
≤ 3.5 Max (850 nm) ≤ 1.5 Max (1300 nm) ≤ 2.7 Typ (850 nm) ≤ 0.9 Typ (1300 nm) |
≤ 3.5 Max (850 nm) ≤ 1.5 Max (1300 nm) ≤ 2.7 Typ (850 nm) ≤ 0.9 typ (1300 nm) |
Minimum Bandwidth: Overfilled Launch [Mhz-km] |
N/A |
≥ 200 (850 nm) ≥ 500 (1300 nm) |
≥ 500 (850 nm) ≥ 500 (1300 nm) |
≥ 1500 (850 nm) ≥ 500 (1300 nm) |
≥ 3500 (850 nm) ≥ 500 (1300 nm |
Minimum Bandwidth: Laser Effective Modal Bandwidth [Mhz-km] |
N/A |
N/A |
N/A |
≥ 2000 (850 nm) |
≥ 4700 (850 nm) |
