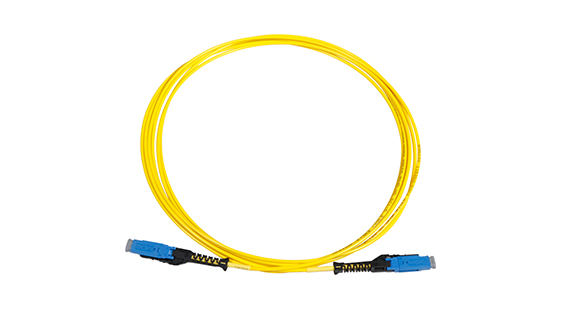

FOLINK MDC Patch cord use US Conec's ELiMENT™ MDC connector is a Very Small Form Factor (VSFF) duplex optical connector designed  for termination of Multi-mode and Single-mode fiber cables up to 2.0mm in diameter.

Multiple emerging transceiver Multi-Source Agreements (MSAs) have defined port breakout architectures that require a duplex optical connector with a smaller footprint than the LC connector. The reduced size of the MDC connector will allow a single array transceiver to accept multiple MDC patch cables which are individually accessible.

Directly at the transceiver interface. The new format will support four individual MDC cables in a QSFP footprint and two individual MDC cables in an SFP footprint. The increased connector density at the module/panel minimizes hardware size which leads to reduced capital and operational expense. A one Rack Unit (RU) housing can accommodate 144 fibers with LC Duplex connectors and adapters. Using the smaller MDC connector increases the fiber count to 432F in the same 1 RU space.

Features

• Two 1.25mm ferrules in one connector housing;

• Push-pull boot for connector insertion and extraction;

• Simple polarity reversal with no exposed fibers;

• Meets IEC 61753-1 Grade B insertion loss requirements;

• Telcordia GR-326 and TIA-568 compliant;

• Designed for cables up to 2.0mm OD;

• MM, SM and SM APC available;

• 3x fiber cabling density over LC.
