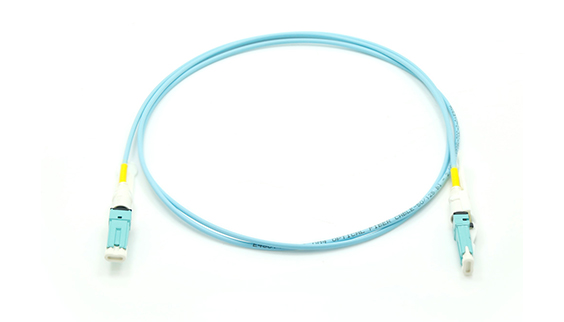

The CS Connector is a next-generation high-density solution designed for 200G/400G QSFP-DD and OSFP applications, boosting 400Gb fiber port density and capacity, ideal for ultra-high density optical interconnect needs in hyperscale data center and edge co.
Features
45% volume reduction compared to LC dual core connectors
Designed for OSFP/QSFP-DD applications
Applicable to 1.25mm inserts
With push-pull bar
IEC interchangeability test Grade B
400G QSFP-DD/OSFP optical module direct connection solution

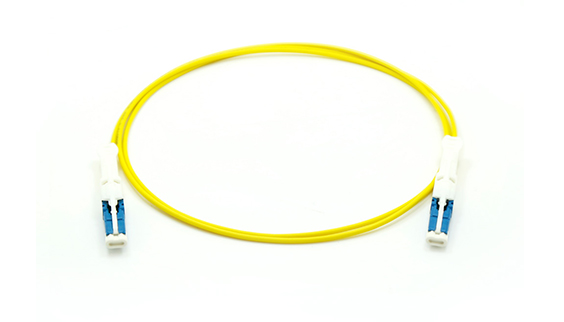

Two CS-CS single-mode fiber patch cables can be used for 400G QSFO-DD/OSFP optical module direct connection.
400G QSFP-DD/OSFP-2x200G QSFP56 optical module direct connection
Two CS-LC single-mode fiber patch cables can be used to connect 400G QSFO-DD/OSFP to 200G QSFP56 optical module.
400G QSFP-DD/OSFP-2x200G QSFP56 optical modules direct connection
The backbone line uses MPO fiber patch cable to connect high-density wiring box and pre-terminated module box to realize high-density wiring, and CS to LC fiber patch cable is used to connect near equipment end to realize 400G integrated wiring.
