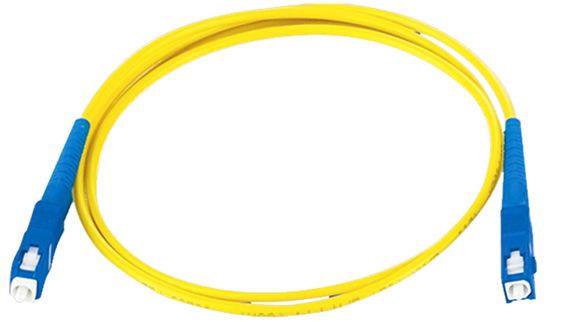

High performance attenuated patch cords are used in telecom applications to attenuate the optical signal in a link. Attenuated patch cords can be installed in place of conventional patch cords to provide a constant level of attenuation with a return loss of >50 dB. The attenuated patch cord can be used to replace the conventional cable assembly and attenuator combination. It is a compact, multi purpose passive device designed to operate at the 1310 and 1550 nm wavelengths. Attenuated patch cords can be provided with various connector styles LC, SC, ST and FC to meet customer's requirements.
Provides the functions of attenuator and cable assembly simultaneously
Low Back Reflection
100% Insertion Loss Testing
Connector varieties available
Conforms to the requirements of EIA/TIA standards
Inexpensive and compact
Attenuation values available: 01= 1 dB, 02= 2 dB, 03= 3 dB, 04= 4 dB, 05=5 dB, 06= 6 dB, 07= 7 dB, 08= 8 dB, 09= 9 dB, 10= 10 dB 15= 15 dB, 20= 20 dB
Applications
Telecommunication Networks
CATV
LAN and WAN
