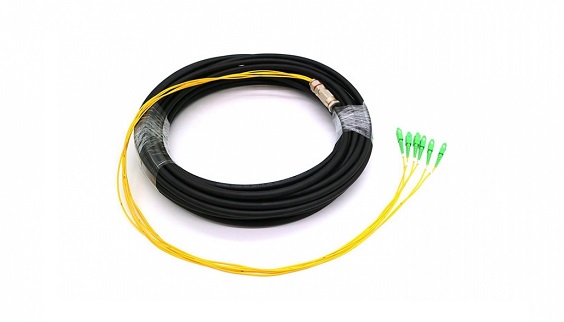

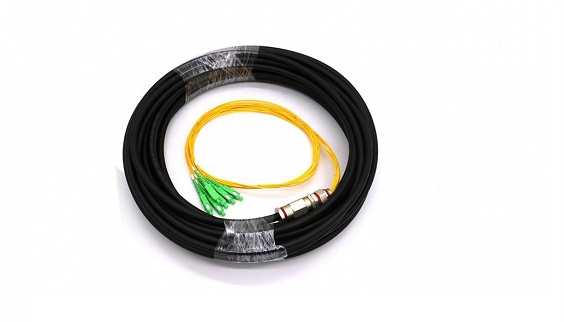

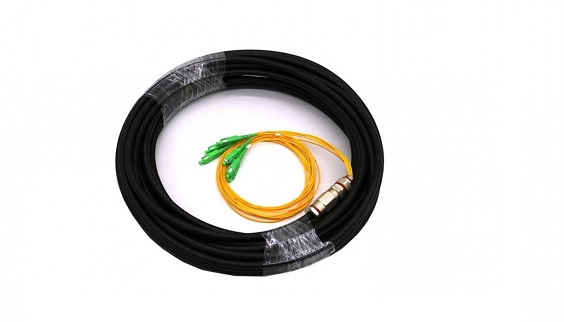

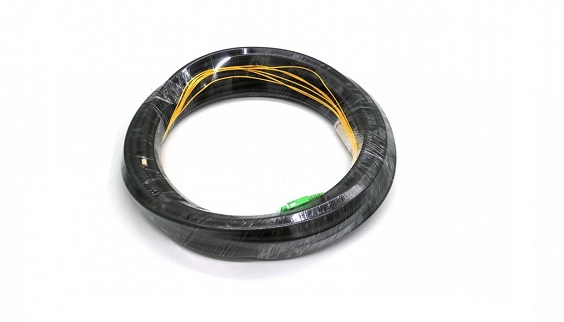

SC APC 6 core outdoor black waterproof cable pigtails is a fiber optic patch cord that is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high-density cabling in data centers, enterprise networks, telecom rooms, server farms, cloud storage networks, and any places fiber patch cables are needed.
It is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
Features:
Low insertion loss
High return loss
Excellent interchangeability
High mechanical durability
Standard: RoHS
Specifications:
Type |
Standard, Master |
LC, SC, ST, FC, MU, DIN, D4, SC/APC, FC/APC, LC/APC, MU/APC |
|
Style |
Duplex MTRJ/Female, MTRJ/Male |
9/125 SMF-28 or equivalent ( Singlemode ) OS1 | |
Fiber Type |
62.5/125 (Multimode) OM1 50/125, (Multimode) OM2 |
|
50/125, (Multimode) OM3 50/125, (Multimode) OM5 | |
Cable Type |
Simplex, Duplex (Zipcord) |
Φ3.0mm, Φ2.0mm, Φ1.8mm | |
Φ1.6mm | |
|
Φ0.9mm OFNP, OFNR, PVC, LSZH. | |
Polishing Manner |
UPC, APC |
Insertion Loss |
≤ 0.1dB (For Singlemode Master) |
≤ 0.25dB (For Singlemode Standard) | |
≤ 0.25dB (For Multimode) | |
Tested by JDS RM 3750 | |
|
Return Loss (For Singlemode) |
UPC ≥ 50dB |
SPC ≥ 55dB | |
APC ≥ 60dB (typ.65dB) | |
Tested by JDS RM3750 | |
Repeatability |
±0.1dB |
Operating temperature |
-400C to 850C |
Geometry |
Ferrule End face Radius |
7mm ≤ R ≤ 12mm (For APC) | |
Requirement | |
10mm ≤ R ≤ 25mm (For Standard) | |
(For Singlemode) | |
|
Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 | |
Applications:
Telecommunication networks, Gigabit Ethernet
CATV, Video, Multimedia
Active device termination, Premise installations
Industrial, Military
