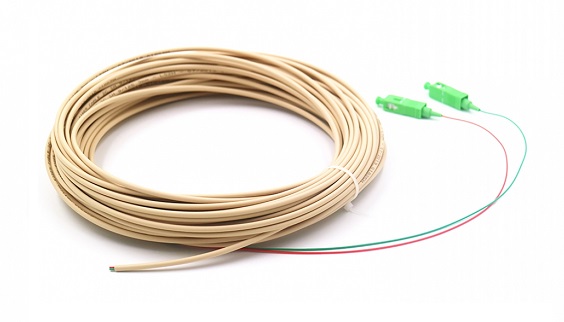

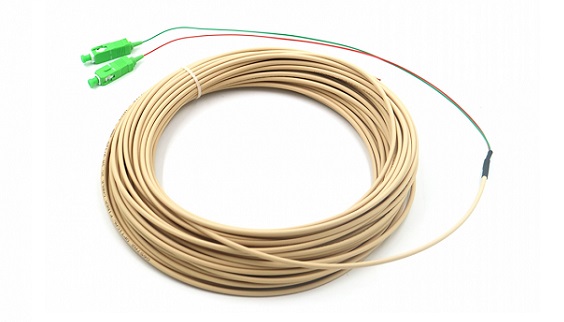

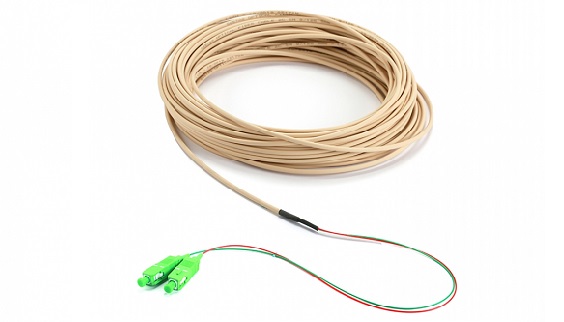

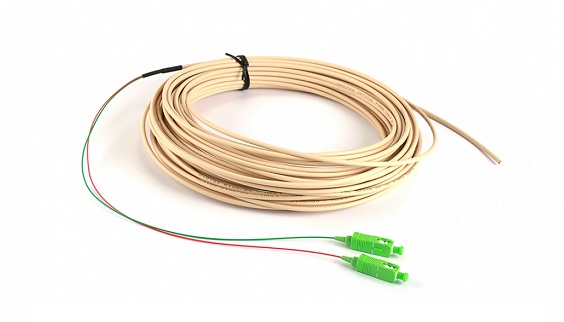

Fiber pigtail is a similar product of fiber patch cable. The difference is that fiber pigtail has only one fiber connector on the end and a length of exposed fiber cable at the other end on the other end. Fiber pigtail usually comes with usually unbuffered optical fibre one side of the cable, there are single mode and multimode fiber optic pigtails, which can be assembled by various types of fiber optic terminations such as SC, FC, ST, LC, MU, MTRJ, MTP, MPO, etc. The cable end of fiber pigtail is always used to be fusion spliced to a single fibre of a multi-fibre trunk to break out the multi-fibre cable into its component fibres for connection to the end equipment. Therefore, A good quality fiber pigtail is a basic and very important solution to fiber optic cablings.
Features:
Low Insertion Loss and High Return Loss
Good Exchange Ability
Good Durability
High Temperature Stability
Standard: Telcordia GR-326-CORE
Specifications:
Fiber Mode |
Single mode |
Fiber Count |
2 |
Connector Style |
SC/APC |
Polish or Ferrule Interface Type |
APC |
Cable Lengths |
20/40/60M |
Jacket Materials |
LSZH Material |
Outer Jacket Color |
Light Ivory/Cream |
Outer Jacket Diameter(mm) |
3.0mm |
Fiber Type |
G657A2 |
Inner Cable Diameter |
0.9mm |
Inner cable Color |
Green/Red |
Storage Temperature |
-20°C to 60°C |
Installation Temperature |
-5°C to 50°C |
Operating Temperature |
-20°C to 60°C |
Crush(N/100mm) |
1000 |
Maximum Tensile Load (Long term) |
150N |
Minimum Tensile Load (Short term) |
400N |
Applications:
CATV
Telecommunication Networks
Local Area Networks (LANS)
Data Processing Networks
Test Equipment
Wide Area Networks(WANS)
