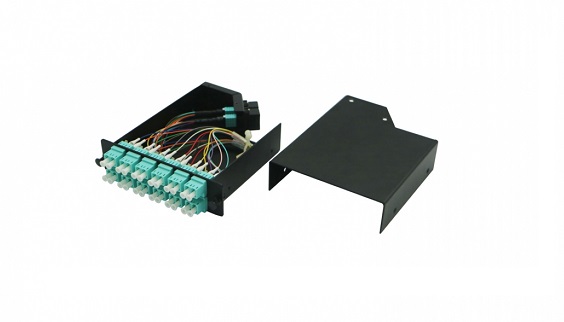

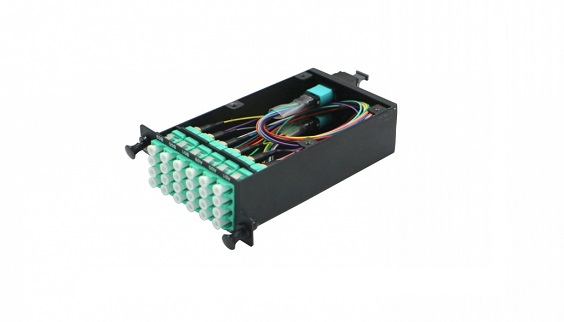

24 LC to 2 MTP/MPO 10G/40G Multimode MTP/MPO Cassette from FOLINK’s are pre-terminated, pre-tested, and come with 12- or 24-fiber MPO/MTP connectors on the back that breaks out to single or array connectors on the front. Cassettes are custom-built to your configuration needs and modules are custom-built to to meet your specific application needs. Select from a variety of connectors including LC, SC, and MU for OM1, OM2, OM3, OM4, and OS2 deployment.

• Come with Standard Black LGX footprint styles and Available in Custom-Built Cassettes

• 100% factory tested with test results included with each cassette

• Plug-n-play cassette eliminates the need for field termination or splices

• Allow for a simple migration path to 40GbE and 100GbE networks with MPO/MTP cassettes

• MPO/MTP adapter swivel allows for easy cable routing and proper bend radius

• All cassettes use either 24-fiber or 12-fiber low-loss MPO/MTP connectors on the back

• Data Centre Infrastructure

• Ethernet, fiber channel, ATM, LAN, MAN and WA

• 19-inch standard size, fit for 19-inch rack, 23-inch size is available on request

• Standard size is 1U, 2U, or 4U are available on request

• 12, 24, 48, 96 Port optional

• Suitable for SC, FC, ST,LC adapter, duplex and simplex both available.

• Smart Design to supply firm protect for optic cable terminal connection and optic fiber adapter installation

• Provide termination, protection, connection, management of fiber optic cable

• RoHS compliant

• Full assembly (loaded) or empty panel optional

• Black or White color

• Connector: LC/SC/MU SM-Blue, APC-Green, MM-Beige, OM3-Aqua, OM4-Violet ;

• MPO/MTP SM-Green, MM-Beige, OM3-Aqua.

• Adaptor: LC/SC SM-Blue, APC-Green, MM-Beige, OM3-Aqua, OM4-Violet ; MU-Brown ; MPO/MTP-Black

• 24-strand 24 fibers LGX= 1 x MPO/MTP-Adapter back to the cassette.

• 12-strand 24 fibers LGX= 2 x MPO/MTP-Adapter back to the cassette.
