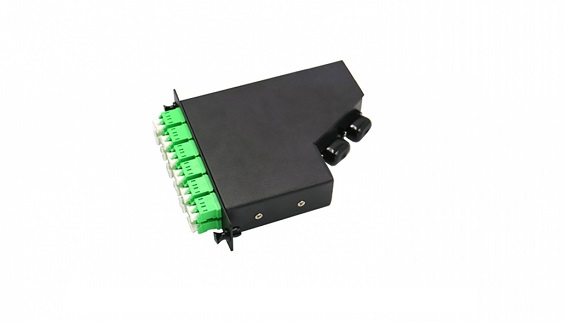

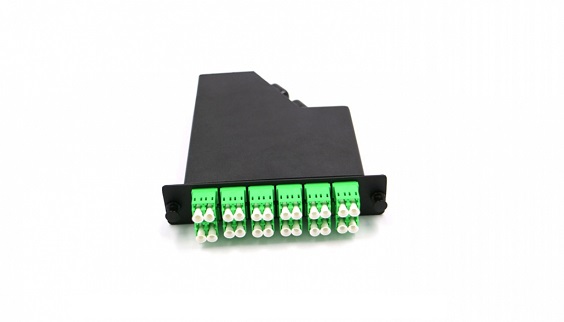

FOLINK’s MPO/MTP Cassettes are pre-terminated, pre-tested, and come with 12- or 24-fiber MPO/MTP connectors on the back that break out to single or array connectors on the front. Cassettes are custom-built to your configuration needs and modules are custom-built to to meet your specific application needs. Select from a variety of connectors including LC, SC, and MU for OM1, OM2, OM3, OM4, and OS2 deployment.
Come with Standard Black LGX footprint styles and Available in Custom-Built Cassettes
100% factory tested with test results included with each cassette
Plug-n-play cassette eliminates the need for field termination or splices
Allow for a simple migration path to 40GbE and 100GbE networks with MPO/MTP cassettes
MPO/MTP adapter swivel allows for easy cable routing and proper bend radius
All cassettes use either 24-fiber or 12-fiber low-loss MPO/MTP connectors on the back
Data Centre Infrastructure
Ethernet, fiber channel, ATM, LAN, MAN and WA
19-inch standard size, fit for 19-inch rack, 23-inch size is available on request
Standard size is 1U, 2U, or 4U are available on request
12, 24, 48, 96 Port optional
Suitable for SC, FC, ST,LC adapter, duplex and simplex both available.
Smart Design to supply firm protect for optic cable terminal connection and optic fiber adapter installation
Provide termination, protection, connection, management of fiber optic cable
RoHS compliant
Full assembly (loaded) or empty panel optional
Black or White color
Connector: LC/SC/MU SM-Blue, APC-Green, MM-Beige, OM3-Aqua, OM4-Violet ;
MPO/MTP SM-Green, MM-Beige, OM3-Aqua.
Adaptor: LC/SC SM-Blue, APC-Green, MM-Beige, OM3-Aqua, OM4-Violet ; MU-Brown ; MPO/MTP-Black
24-strand 24 fibers LGX= 1 x MPO/MTP-Adapter back to the cassette.
12-strand 24 fibers LGX= 2 x MPO/MTP-Adapter back to the cassette.
