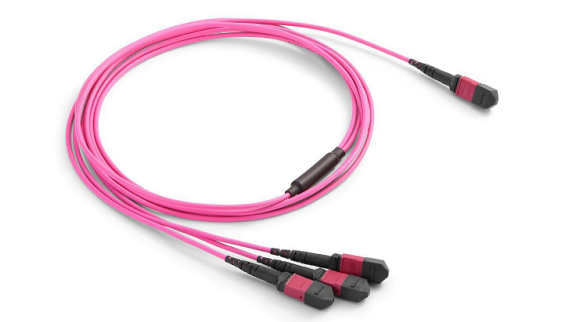

Like MTP/MPO cable, MTP/MPO Shuffle cable is also used for connecting MTP modules together as a permanent link, and it also be used with plug-and-play modules or MTP/MPO connector panels to achieve multi-level connection of the extension of the pre-terminated trunk cable by MTP/MPO panel. Normally, the shuffle cables are used to interconnect cassettes, panels, or ruggedized MTP/MPO fanouts, spanning MDA, HDA, and EDA zones. The difference is that its optical fiber routing is formulated according to the requirements of the optical connection at the construction site, which can realize special optical fiber routing different from the conventional polarity, reducing network installation or reconfiguration time and cost.

Features of MTP/MPO Shuffle Cable

• Low loss performance

• Up to 288 fibers – ideal for high-density applications

• Available in OS1, OS2, G.657A2, OM3, OM4 Fiber Grades – OM1 and OM2 available upon request

• Option for LSZH, OFNP or OFNR cable jacket

• 100% factory terminated and tested

• Pulling eyes are provided as an option to protect the fiber ends during installation

• Save installation and reconfiguration time

Applications of MTP/MPO Shuffle Cable

• Data Centers

• 40/100G applications

• Storage area network- fiber channel

• Parallel optics

• InfiniBand

• The internal connector application in fiber equipment

Standards Compliance of MTP/MPO Shuffle Cable

• TIA/EIA-568.3-D and ISO/IEC 11801

• IEC-61754-7 & EIA/TIA-604-5&GR-1435-CORE

• NFPA 262 or IEC 60332

• Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC

• EN 50575

• InfiniBand Compliant
