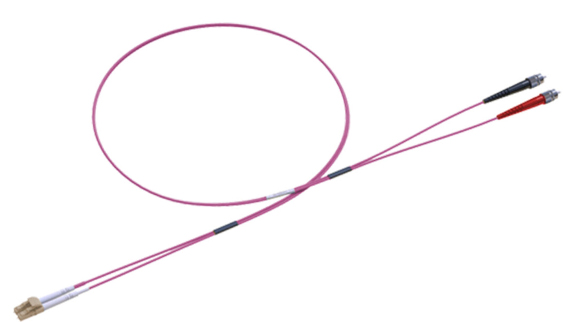

Multimode patch cords are used to connect high speed and legacy networks like 10/40/100 gigabit ethernet, fast ethernet and ethernet. Multimode patch cords are manufactured for internal use using  LSZH, OFNR or OFNP cable and conform to EIA TIA or IEC standards. The OM4 enhanced patch cords are terminated with optimized connectors which gives optimum optical performance.

Features:

• E2000, FC, LC, MTRJ, SC,  and ST connectors

• Low smoke zero halogen (LSZH), Riser (OFNR) or Plenum (OFNP) cable in aqua or erika violet color

• 900 µm / 600 µm tight buffer

• OM4 fiber conforms to ITU-T G.651.1, TIA/EIA 492AAAD, IEC60793-2-10 A1a.3a

• Reduced Bend Sensitivity (RBS) OM4 fiber used as standard

• Simplex and duplex assembly options

• SC and LC duplex assemblies available with clips

• Higher optical performance available on request

• REACH, RoHS & SvHC materials compliant

Applications

• For use in 10Gb/s high speed LAN networks over a 400 m indicative link length at 850 nm (SX) wavelength using a laser launch

• For use in 1Gb/s high speed LAN networks over a 1000 m indicative link length at 850 nm (SX) wavelength using a laser launch

• High speed and legacy networks including Gigabit Ethernet, Fast Ethernet and Ethernet

• Data centers

• Premises cabling in data networks including backbone, riser and horizontal

• Supports video, data and voice services

Ordering Information:

Example P/N: KJH-3D20L-LUSA-M5

Item Description: FOLINK Enhanced Patch Cables, OM3 Fiber, Duplex 2.0mm LSZH Cable, LC/UPC-SC/APC Connector termination, 5 Meters
