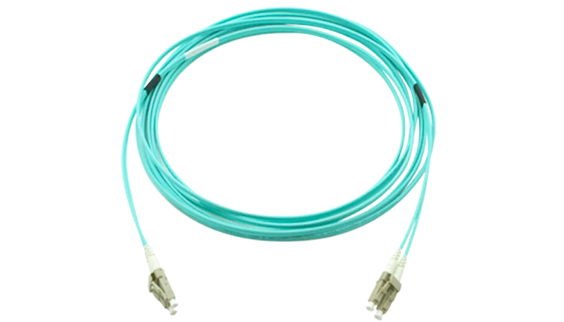

LC enhanced patch cords supplied with a short boot are ideal for high density applications with tight space requirements. The connector length from tip to boot assembly is only 40 mm, compared to 66 mm for standard LC patch cords with heatshrink providing 40% more space.These patch cords have the added benefit of being supplied with reduced bend sensitivity OM3 or OM4 optical fiber which exhibits much lower optical power loss under bend conditions while remaining compatible with conventional cabling.LC short boot patch cords are designed to meet IEC, EN or Telcordia GR 326 requirements.

Features

• Short length – allows up to 40 mm space between rack and closed cabinet door – 25 mm extra!

• Enhanced flexibility of the boot maintains minimum bend radius

• No heatshrink system – improved cable flexibility

• Cable dimensions of 2.0 mm, 1.8 mm, 1.6 mm for optimizing air flow space

Applications

• Data centers

• FTTx Multi dwelling unit (MDU)

• LAN and WAN

Ordering Information:

Example P/N: KJH-3D20L-LUSA-M5

Item Description: FOLINK Enhanced Patch Cables, OM3 Fiber, Duplex 2.0mm LSZH Cable, LC/UPC-SC/APC Connector termination, 5 Meters
