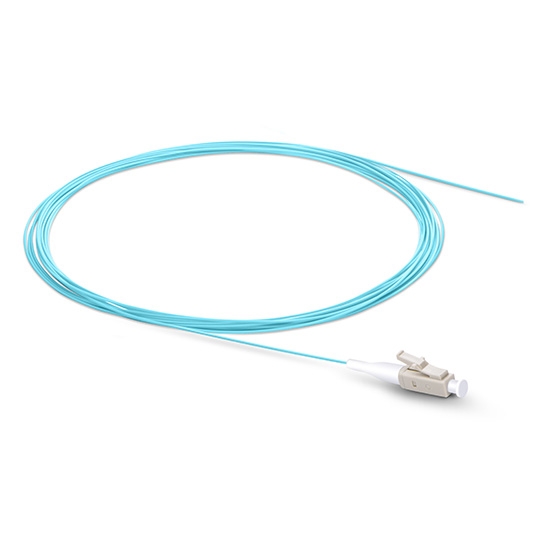

FOLINK simplex pigtails are designed for fusion and splicing within structured cabling systems, they are available with singlemode and multimode, complying with industry standards for optical, mechanical and environmental performance. The simplex pigtails are terminated with SC, FC, ST, LC, MU, E-2000, MT-RJ, Din, D4 connectors at various cable length and fiber types.
FOLINK provides simplex pigtails both with Premium Level and Standard Level quality levels, the Premium Level Pigtails with higher performance and custom options. The Standard Level Pigtails are a cost-competitive solution that meets or exceeds all industry standards. Both of them are under a fast delivery service.
Features:
PVC Flame-retardant Fiber Optic Cable with Tight-buffered Coating on Each Optical Fiber
G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
Optical Testing Guarantees Insertion Loss and Returns Loss
Pass All IEC-61754 and TIA-604 (FOCIS) Performance Requirements
Support Both Fusion and Mechanical Splicing for Fiber Cabling Systems
Technical Specification:
Optical Properties |
Singlemode |
Multimode |
Maxmium Insertion Loss (dB) |
Standard: UPC ≤ 0.3, APC ≤0.3 Premium: UPC ≤ 0.2, APC ≤0.2 |
Standard: ≤ 0.3 Premium: ≤ 0.2 |
| Typical Insertion Loss (dB) |
Standard: ≤0.15 Premium: ≤0.10 |
Standard: ≤0.15 |
Return Loss (dB) |
Standard: UPC ≥ 50, APC ≥ 60 Premium: UPC ≥ 55, APC ≥ 65 |
Standard: ≥ 30 Premium: ≥ 35 |
Test Wavelength (nm) |
1310/1550 |
850/1300 |
Fiber Attenuation (dB/km) |
0.35 at 1310nm |
2.3 at 850nm |
0.2 at 1550nm | ||
0.6 at 1300nm | ||
Transmission Distance |
Not defined |
OM3: 100m at 40/100G, 300m at 10G |
OM4: 100m at 40/100G, 400m at 10G |
General Specification:
Constructions |
Descriptions |
Fiber Count |
Simplex |
Fiber Mode |
Single mode: 9/125μm, OS2/G657 Multimode: 50/125μm, OM2, OM3, OM4; 62.5/125um, OM1 |
Fiber Brand |
Corning: SMF-28® Ultra optical fiber, or ClearCurve bend insensitive optical fiber; Corning ClearCurve multimode optical fiber YOFC: Singlemode and Multimode Fibers. |
Cable Dimension |
0.9mm, 1.6/1.8mm, 2.0mm, 3.0mm or customized |
Cable Jacket Materials |
Low Smoke Zero Halogen (LSZH); Riser (OFNR); Plenum (OFNP) |
Cable Jacket Color |
OS2/G657: Yellow OM3: Aqua; OM4: Aqua / Magenta; or Customized |
Connector Type |
LC, SC, FC, ST, MU, MTRJ, E2000, or others required |
Physical Contact |
APC, PC, UPC |
Connector Color |
LC, SC: Green for SM APC, Blue for SM UPC; Aqua for OM3, Aqua or Magenta for OM4; Grey for OM1/OM2, or Customized FC, ST: Metal MTRJ: Black |
Boot Color |
White/Green/Aqua/Magenta/Grey/Red/Black Customized |
Operating Temperature |
-20 °C ~ +70 °C |
Storage Temperature |
-40 °C ~ +85 °C |
Typical Cable Construction of Fiber Patchcord & Pigtail:
Fiber Count |
OD (mm) |
Nominal |
Max. Tension (N) |
Max. Crushing Resistance (N/100mm) |
||
Weight (kg/km) |
Short Term |
Long Term |
Short Term |
Long Term |
||
Simplex 1.6 |
1.6±0.2 |
2.6 |
80 |
40 |
500 |
100 |
Simplex 2.0 |
1.9±0.2 |
4.5 |
100 |
60 |
500 |
100 |
Simplex 3.0 |
2.8±0.2 |
7.5 |
100 |
60 |
500 |
100 |
Ordering Information:
Example P/N: KJH-91L-SAM2
Item Description: FOLINK Enhanced Pigtails, SM OS2, Simplex 0.9mm tight buffer LSZH Cable, SC/APC Connector termination, 2 Meters
Grade |
Fiber Type |
Cable Type |
Jacket |
Connector |
Unit |
Length |
Special |
||||||||
KJH |
Enhanced |
9 |
SM OS2 |
1 |
0.9mm Tight Buffer |
R |
OFNR |
LU |
LC/UPC |
M |
Meters |
1 |
1 |
xx |
Specify |
KJP |
Premium |
1 |
OM1 62.5/125 |
L |
0.9mm Loose Tube |
P |
OFNP |
LA |
LC/APC |
F |
Feet |
2 |
2 |
||
2 |
OM2 50/125 |
S |
0.9mm Semi-TB |
L |
LSZH |
SU |
SC/UPC |
3 |
3 |
||||||
3 |
OM3 50/125 |
2 |
2.0mm |
SA |
SC/APC |
5 |
5 |
||||||||
4 |
OM4 50/125 |
3 |
3.0mm |
FU |
FC/UPC |
10 |
10 |
||||||||
5 |
OM5 50/125 |
… |
… |
FA |
FC/APC |
XX |
Specify |
||||||||
7 |
G.657 A1 |
TU |
ST/UPC |
||||||||||||
A |
G.657 A2 |
EA |
E2000/APC |
||||||||||||
B |
G.657 B3 |
MU |
MU/UPC |
||||||||||||
… |
… |
… |
… |
||||||||||||
