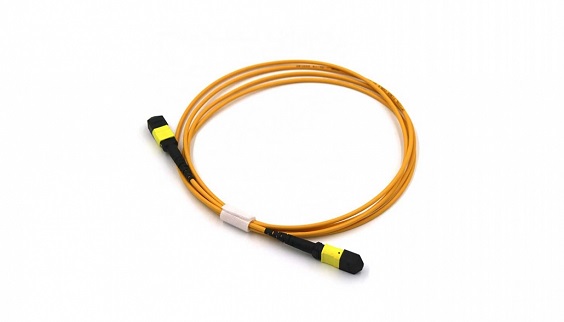

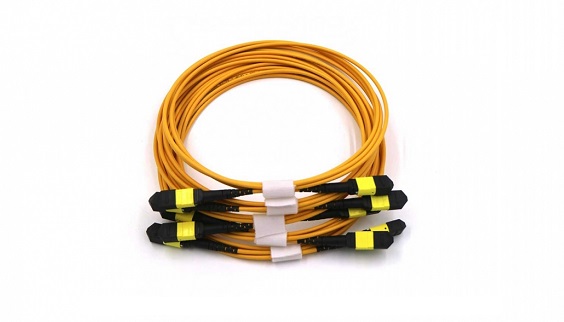

FOLINK's MPO/MTP trunk cables are used to interconnect cassettes, panels or ruggedized MPO fan-outs, spanning MDA, HAD and EDA zones, and easy to rapid deployment of high density backbone cabling in data centers and other high fiber environments reducing network installation or reconfiguration.

MPO/MPT trunk cables using a compact and rugged microcable structure, according to different colors divided into SM, MM and 10G MM. The fiber ranges from 12 to 144, MTP polarity options are TIA way is Style A(up), Style B(down) and Style C(up/up). The cable length belongs to a custom product.

• With 12-fiber and 24-fiber MPO/MTP connector standard

• Available in OS1/2, OM2, OM3 and OM4

• Available in FC,LC, SC, ST, MU, and MTP

• Interface polished type has PC, UPC and APC

• Available in 12 / 24 / 36 / 48 / 72 / 96 / 144-fibers

• 100% factory tested

• Discrete connectors are heat-cured and use ceramic ferrules and sleeves

• Fan-out fibers from MPO/MTP connectors into individual simplex or duplex

• Customized for length, staggering, connector type, breakout style, fiber count, and labeling fiber

Applications

1. Data Center Infrastructure

2. Storage Area Networks(SAN)

3. Gigabit Ethernet

4. Telecommunication networks

Ordering Information:

Example P/N: KTC-312LA-SMMB-M10

Item Description: FOLINK Trunk Cables, OM3 12-Fiber, LSZH Yellow Jacket, Standard Grade MPO Female to MPO Female, Polarity B, Overall Length 10 Meters.
