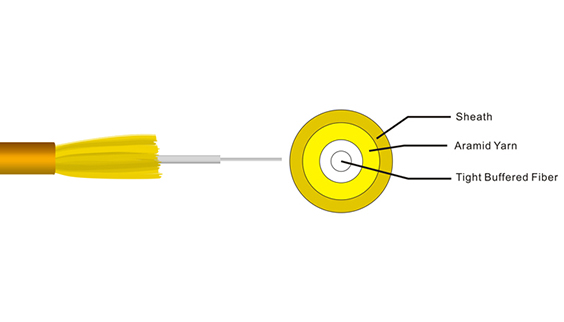

Simplex cable use single 900um or 600um tight buffer fiber as optical commucation medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member uinits, and the cable is completed with a PVC or LSZH (low smoke ,Zero halogen,Flame-retardant ) jacket.
Good mechanical and environmental characteristics;
Flame retardant characteristics meets the requirements of relevant standards;
The mechanical characteristics meet the requirements of relevant standards;
Soft, flexible, easy to splice, and with big capacity data transmission;
Meet various requirements of market and clients.
Applications
Optical fiber jumper or pigtail.
Indoor riser level and plenum level cable distribution.
Interconnect between instruments, communication equipments.
Fiber Count | 1 | |||||
---|---|---|---|---|---|---|
Outer Diameter (mm) | 1.6 | 1.8 | 2.0 | 2.4 | 3.0 | |
Nominal Weight (Kg/km) | 2.9 | 3.2 | 3.5 | 5.0 | 6.8 | |
Max. Tensile Strength(N) | Short-term | 80 | 80 | 100 | 100 | 150 |
Long-term | 40 | 40 | 60 | 60 | 80 | |
Min. Bending Radius (mm) | Dynamic | 20D | ||||
Static | 10D | |||||
Max. Crush Resistance (N/100mm2) | 500 |
