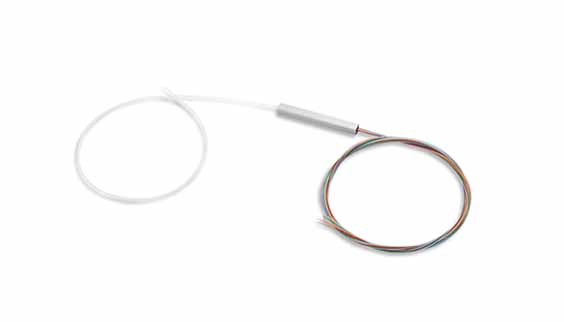

PLC splitter is an optical power equalization product based on quartz substrate material and planar optical waveguide technology. It is mainly used for optical signal coupling and distribution in passive optical network (PON) systems. It is one of the most important passive components in optical networks.
Designed to meet Telcordia standards
Low IL and PDL
Excellent uniformity
Range of packaging options available
High specification connectors available
Applications
1. FTTX deployments
2. CATV networks
3. PON’s
4. WAN’s
Type |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
Insertion Loss(dB) |
4.00 |
7.20 |
1080 |
13.80 |
17.20 |
20.50 |
Return Loss(dB) |
>55 |
|||||
Directivity(dB) |
>55 |
|||||
Operating Wavelength(nm) |
1260~1650 |
|||||
PDL(dB) |
<0.20 |
<0.20 |
<0.20 |
<0.30 |
<0.30 |
<0.30 |
Uniformity(mW) |
<0.60 |
<0.80 |
<1.00 |
<1.50 |
<2.00 |
<2.50 |
Power Handling(mW) |
300 |
|||||
Operating Temperature(°C) |
-40 to +80 |
Bare type 250um |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
Length(mm) |
40 |
40 |
40 |
50 |
50 |
60 |
Width(mm) |
4 |
4 |
4 |
7 |
7 |
12 |
Height(mm) |
4 |
4 |
4 |
4 |
4 |
4 |
Component type 900um |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
Length(mm) |
60 |
60 |
60 |
60 |
80 |
100 |
Width(mm) |
7 |
7 |
7 |
12 |
20 |
40 |
Height(mm) |
4 |
4 |
4 |
4 |
6 |
6 |
