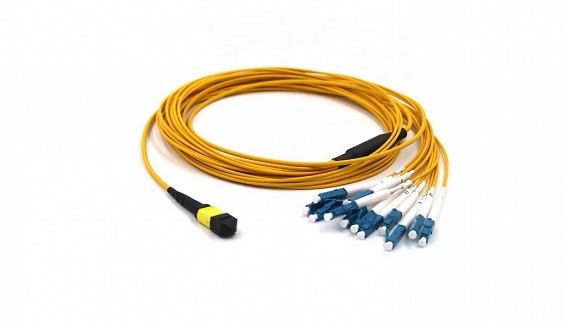

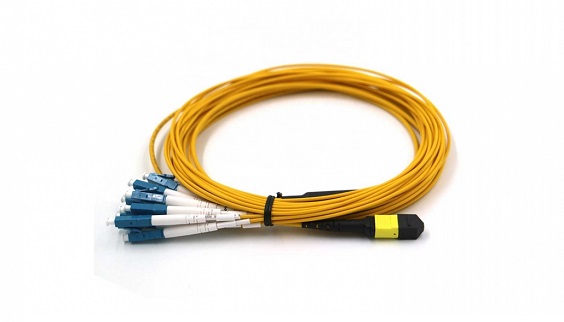

FOLINK's MPO/MTP harnesses cables are usually divided into three types of MTP-MTP connector, MTP-Common connector and MTP-Secure Keyed LC connector, according to different colors divided into SM, MM and 10G MM. The fiber cores range from 8 to 144.

The Harness MPO(MTP) cables are offered for various applications for all networking and device needs like 100 Gig modules including CFP, CFP2 and CFP4 series. All of our MPO(MTP) harness cables meet IEC 1754-7 and TIA/EIA 604-5 standards. Actually, it belongs to a custom product.

• With 12-fiber and 24-fiber MPO/MTO connector standard

• Available in OS1/2, OM2, OM3 and OM4

• Available in FC,LC, SC, ST, MU, and MTP

• Interface polished type has PC, UPC and APC

• Support use in attaching directly to 40/100G transceivers

• 100% factory tested, with test results included for each assembly

• Polarity options are TIA style A, B, or C (Method B is standard)

• For transition from trunk backbone assemblies to fiber rack system

• Discrete connectors are heat-cured and use ceramic ferrules and sleeves

• Fan-out fibers from MPO/MTP connectors into individual simplex or duplex

• Used in conjunction with frame (Zero-U) or Flush Mount 1RU panels, and direct connect into SAN equipment

• Customized for length, staggering, connector type, breakout style, fiber count, and labeling

Applications

1. Data Center Infrastructure

2. Storage Area Networks(SAN)

3. Gigabit Ethernet

4. Telecommunication networks

Ordering Information:

Example P/N: KHC-312PA-EPLA-M2
Item Description: FOLINK Harness Cables, OM3 12-Fiber, OFNP Aqua Jacket, Elite Grade MTP® Male to LC/UPC, Polarity A, Overall Length 2 Meters

*Harnesses are typically equipped with pinned (male) connectors on one end.

*Standard harnesses are supplied with straight polarity.

Specification
