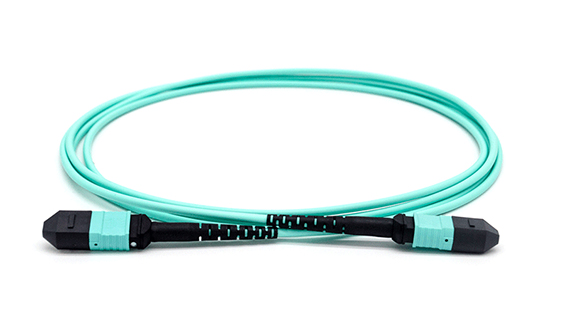

OPTKO's MPO MicroCable Patch assemblies facilitate rapid deployment of high density cabling in data centers or other high fiber density environments reducing network installation or reconfiguration time and cost. They are typically used for patching within MDA zone or interconnect MPO active equipment ports with backbone cabling.
OPTKO's MPO MicroCable Patch assemblies are offered as standard 12 fibers using a compact and rugged 3mm OD Single Jacket MicroCable structure. The compact cables optimizes patch cable-way use and improves the airflow.
OPTKO's MPO MicroCable assemblies are built with highest quality components. MPO low loss Premium versions are offered featuring low insertion loss for demanding high speed networks with critical power budget requirements.
OS1/2 G.657A1, OM3, OM4
Jacket standard colors; G.657A1 yellow, OM3 and OM4 Aqua (OM4 EricaViolet Available)
12xFiber Ferrule MPO
LSZH, OFNP, OFNR Cable Jacket Options
Female (standard) and Male MPO Connectors
Polarity A (standard), B or C
Factory Terminated and Tested
MPO Interface – MPO components feature superior optical and mechanical properties
Optimised Performance – Low loss Premium MPO and OM4 fiber assures low insertion losses and power penalties in tight power budget high speed network environment
High Density – Multifiber connector and compact dimension of ruggedised MicroCable ease space in costly data center environments
Rapid Deployment – Factory terminated modular system saves installation and reconfiguration time during moves, adds and changes
Reliability – 100% tested – Combination of high quality components and manufacturing quality control guarantees product to the highest standard
Next Generation Network Proof – Emerging high speed protocol are going to use MPO interface
Applications
1. Data Center Infrastructure
2. Storage Area Networks(SAN)
3. Gigabit Ethernet
4. Telecommunication networks
Construction（MPO/MTP）
ELEMENT |
CHARACTERISTIC |
|---|---|
Fiber |
OS1/OS2 G.657A1, OM3, OM4 |
Tail Dimensions |
3 mm Tails |
MPO Termination |
MPO 12 Fiber ~Ferrule Boot Colour: Black Body Sleeve: MM (Beige), MM Premium(Aqua, EricaViolet for EV Cable), SM (Green), SM Premium (Yellow) |
Cable Diameter |
12/24 Cores MicroCable Single Jacket OD Max 2.9 ± 0.1 mm |
Crush Resistance |
500N/ 100mm |
Cable Tensile Strength |
(Short) 200N |
Cable Strength Member |
Aramid |
Storage Temperature |
-20 ~ +60°C |
Installation Temperature |
-5 ~ +50°C |
Operating Temperature |
-20 ~ +60°C |
Optical performance（LC/SC/FC/ST/MU）
CONNECTOR MATING |
IL AVERAGE |
IL MAX |
RETURN LOSS |
|---|---|---|---|
MPO Premium (MM) |
0.10 dB |
0.35 dB |
N/A |
MPO (MM) |
0.20 dB |
0.60 dB |
N/A |
MPO Premium (SM) |
0.10 dB |
0.35 dB |
>60 dB |
MPO (SM) |
0.25 dB |
0.75 dB |
>60 dB |
Cable Performance
CABLED FIBRE TYPE (ISO/IEC 11801) |
OS1/OS2 |
OM3 |
OM4 |
|---|---|---|---|
Attenuation Coefficient [dB/km] |
≤ 0.38 Max (1300 nm) ≤ 0.25 Max (1300 nm) ≤ 0.34 Typ (1550 nm) ≤ 0.19 typ (1550 nm) |
≤ 3.5 Max (850 nm) ≤ 1.5 Max (1300 nm) ≤ 2.7 Typ (850 nm) ≤ 0.9 typ (1300 nm) |
≤ 3.5 Max (850 nm) ≤ 1.5 Max (1300 nm) ≤ 2.7 Typ (850 nm) ≤ 0.9 typ (1300 nm) |
Minimum Bandwidth: Overfilled Launch [Mhz-km] |
N/A |
≥ 1500 (850 nm) ≥ 500 (1300 nm) |
≥ 3500 (850 nm) ≥ 500 (1300 nm) |
Minimum Bandwidth: Laser Effective Modal Bandwidth [Mhz-km] |
N/A |
≥ 2000 (850 nm) |
≥ 4700 (850 nm) |
Download
