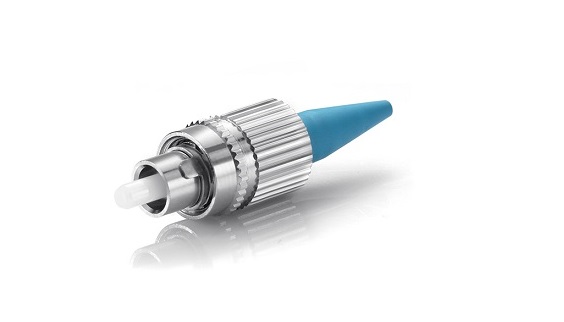

The FC Connector named as Fixed Connection Connector, which is originally developed by Seiko Instruments. It is one of the most popular connectors, because of its rugged metal housing, designed for use in unstable environments which provides a secure connection. The FC is a screw-in (thread) connector and has to be turned to make or break connection.
The FOLINK FC connector is available in both singlemode and multimode versions, and fully intermateable with NTT-FC products. Both singlemode and multimode have zirconia ferrules with pre-radiused PC profile and convex spherical end, or the 8o angle (SM) in a step or conical endface for the APC version. All our FC connectors are able to achieve low optical loss and back reflection while ensuring maximum repeatability. FC 1pc Connector and FC Connector kits are available for choices from us.
Metal screw-in(thread) housing makes a secure connection
Precision anti-rotation key and corrosion resistant body
Low insertion and back refiection loss
Free-fioating ceramic ferrule
Available with a full range of UL-rated FC boots
Compliance with Telcordia, TIA/IEA, IEC and JIS
Ordering Information:
Connector |
Ferrule Type |
Boot Type |
Boot Color |
*Reference |
|||||
F51 |
FC/UPC Standard 1pc |
125 |
SM Standard 125μm |
1 |
Standard 900μm |
L |
Blue |
C |
Customized |
153 |
SM Premium 125μm |
2 |
Standard 2.0mm |
W |
White |
||||
159 |
SM Low Loss 125μm |
3 |
Standard 3.0mm |
R |
Red |
||||
197 |
MM Premium 127μm |
M |
Mini 900μm |
Y |
Yellow |
||||
N |
Mini 2.0mm |
K |
Black |
||||||
L |
Mini 3.0mm |
A |
Aqua |
||||||
F |
Flex Angle 3.0mm |
V |
Violet |
||||||
eg. Part Number: F51-125-LL
Item Description: FOLINK FC/UPC Enhanced Connectors, SM Standard 125μm Ferrule, with Mini 3.0mm Blue Boot
