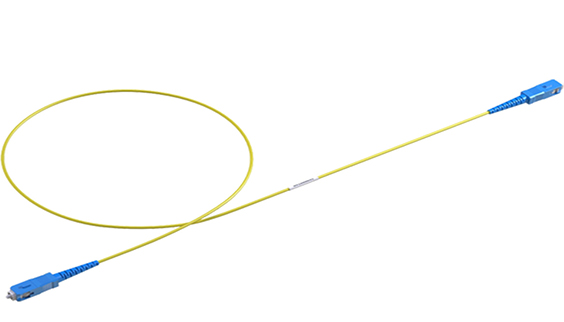

Single mode patch cords are used for telecom networks and also used for high speed metropolitan and access network. The single mode patch cords are manufactured using LSZH cables which conform to IEC or EIA TIA standards. The singlemode enhanced patch cords are terminated with optimized connectors which give optimum optical performance.
E2000, FC, LC, MTRJ, MU, SC and ST connectors
UPC and APC connectors
Low smoke zero halogen (LSZH) jacket in yellow color
900 µm or 600 µm tight buffer
Singlemode cabled fiber conforms to ITU-T G.652D, TIA/EIA 492 CAAB, ITU-T G.657A1 or A2
Simplex and duplex assemblies
Duplex assemblies available with clips (SC and LC)
Different connector performance range for specific application available
Armoured option also available
REACH, RoHS & SvHC materials compliant
Applications
CATV / Video
Passive Optical Network PON
WDM / DWDM
FTTH
Data centers
Supports high speed multi channel video, data and voice services in metropolitan and access networks
ATM, SONET and WDM
